Project Overview

To ensure the longevity, stability and seamless cooperation within our project, we adhere to Clean Architecture. This approach prioritizes Dependency Inversion, ensuring our business logic (The "Domain") remains isolated from volatile implementation details like databases, network protocols, or UI frameworks.

The Core Rules

• Dependencies point INWARD: Inner layers (Domain/Application) must have zero knowledge of Outer layers (Infrastructure/UI/Delivery).
• Interfaces over Implementations: The Application layer defines what it needs via interfaces. The Infrastructure layer provides how it happens by implementing those interfaces.
• Data Crosses Boundaries as Simple Structures: When passing data across boundaries, use simple DTOs (Data Transfer Objects) or primitive structures. Never pass Entity Framework models or UI-specific objects into the Domain.

• Enterprise Business Rules : Echoes.Domain
• Application Business Rules : Echoes.Application
• Interface Adapters : Shared.Network
• Frameworks & Drivers : Entry points (instances), Echoes.GameServer, Echoes.PersistenceWorker and Echoes.CryptoWorker

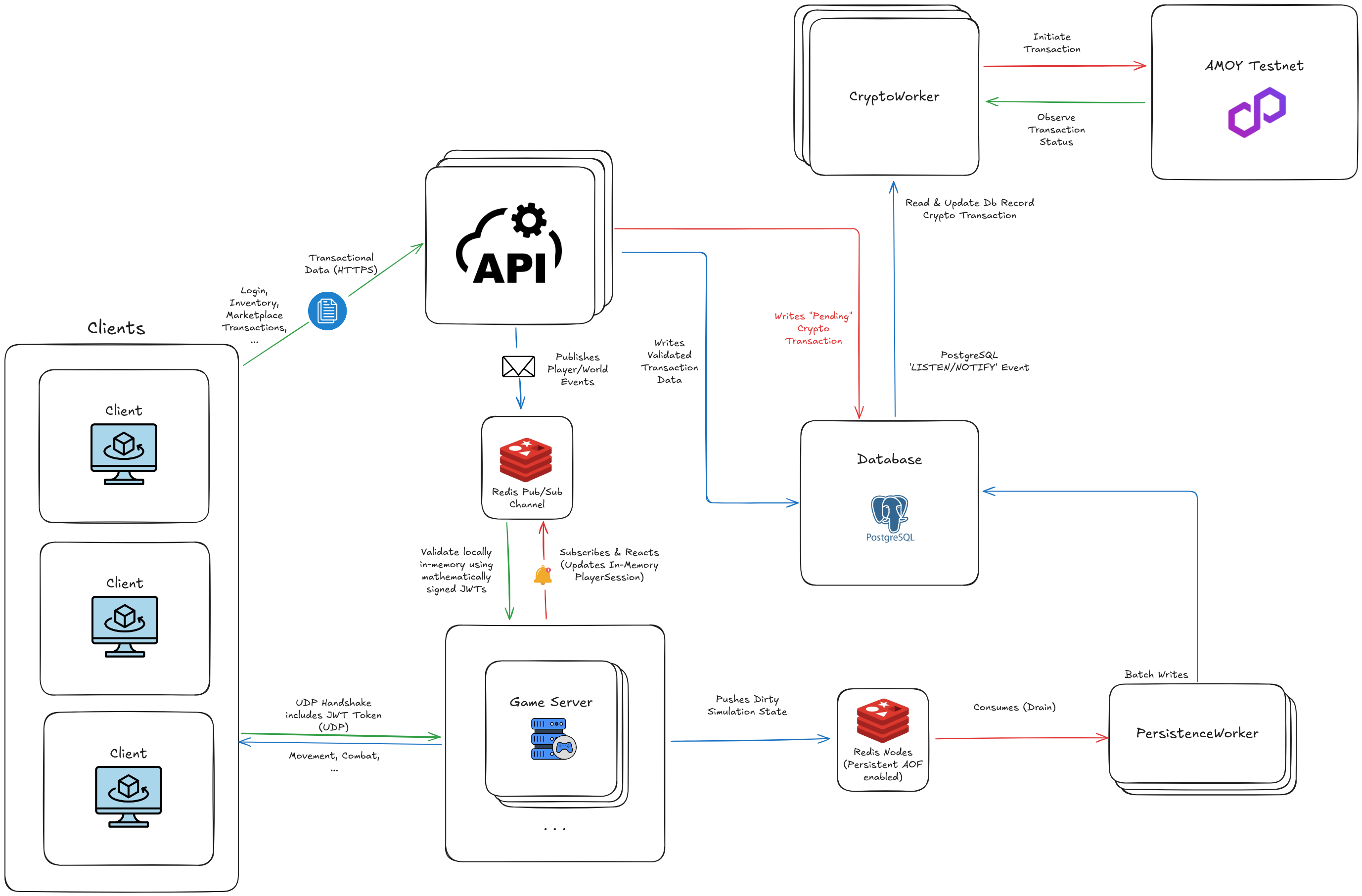

System Architecture

Codebase Breakdown & Guidelines

Backend

├── Backend
│   ├── Echoes.API
│   │   ├── Controllers
│   │   └── Properties
│   ├── Echoes.Application
│   ├── Echoes.CryptoWorker
│   │   └── Properties
│   ├── Echoes.Domain
│   ├── Echoes.GameServer
│   │   └── Properties
│   ├── Echoes.Infrastructure
│   └── Echoes.PersistenceWorker
│       └── Properties

---

Echoes.API

Project Type	ASP.NET Core Web API (.NET 8)
Dependencies	Shared.Domain, Shared.Network, Shared.Abstraction, Echoes.Application, Echoes.Infrastructure
Grouped by	Feature Context

Scope & Responsibility

This is the HTTP delivery mechanism of the system. It exposes REST endpoints and translates HTTP requests into Application use cases.

• Controllers: Accept HTTP requests and convert them into Commands/Queries.
• DTO Mapping: Maps incoming request models to Shared.Network DTOs or Application commands.
• Authentication & Authorization: JWT configuration and middleware setup.
• Dependency Injection Configuration: Registers Infrastructure implementations to Application interfaces.

Rules

• Thin Controllers: No business logic inside controllers.
• No Direct Database Access: Always go through Echoes.Application.
• Framework Boundary: This project may depend on ASP.NET Core, but nothing inward may depend on it.

---

Echoes.Application

Project Type	Class Library (.NET 8)
Dependencies	Echoes.Domain, Echoes.Shared.Abstraction, Echoes.Shared.Domain
Grouped by	Feature Context

Scope & Responsibility

This layer contains the Application Business Rules (Use Cases). It orchestrates domain behavior and defines required infrastructure through interfaces.

• Use Cases: RegisterPlayer, MintItem, ProcessMatchResult, etc.
• MediatR Handlers / Command Handlers
• Repository Interfaces: IPlayerRepository, IMatchRepository
• External Service Interfaces: ICryptoService, INotificationService
• Transaction Coordination

Rules

• No Infrastructure Code: Only define interfaces — never implement them here.
• Orchestration Only: Coordinates Domain objects but does not contain core domain rules.
• Deterministic: Should be testable using mocked interfaces.

---

Echoes.CryptoWorker

Project Type	Worker Service (.NET 8)
Dependencies	Echoes.Shared.Domain, Echoes.Application, Echoes.Infrastructure, Echoes.Domain
Grouped by	Feature Context

Scope & Responsibility

Handles blockchain-related operations and heavy cryptographic workloads outside the HTTP lifecycle.

• Blockchain Event Listening
• Transaction Signing
• Batch Minting
• Event Publishing (e.g., CryptoTransactionCompletedEvent)

Rules

• Background Processor Only
• No Business Rule Ownership
• Trigger Application Use Cases when necessary
• Prefer Event-Driven Communication over Direct Calls

---

Echoes.Domain

Project Type	Class Library (.NET 8)
Dependencies	None (Only standard C# libraries).
Grouped by	Feature Context

Scope & Responsibility

This is the heart of the system. Code here should represent the core business concepts independent of how they are persisted or displayed. This should contain the core concepts that are used only in the backend if its shared with unity, put into Echoes.Shared.Domain.

• Entities: Core business objects (e.g., Player, Match).
• Value Objects: Domain concepts defined by properties rather than identity (e.g., WalletAddress).
• Domain Exceptions: Business-specific error states.

Rules

To keep the system modular and testable, adhere to these strict boundaries:

• Zero Infrastructure: No references to databases, ORMs, JSON serialization, or web frameworks.
• State-Focused: Logic must be purely state-oriented.
• Mock-Free Testing: If you cannot test the logic without a mock framework, the logic belongs in a different layer.

---

Echoes.GameServer

Project Type	Worker Service (.NET 8)
Dependencies	Shared.Domain, Shared.Network, Shared.Abstraction, Echoes.Application, Echoes.Infrastructure, Echoes.Domain
Grouped by	Execution Context

Scope & Responsibility

This layer acts as the orchestrator. It manages the lifecycle of the game simulation and facilitates communication between external inputs and internal business logic.

• Game Loop Orchestration: Manages the fixed-interval "Tick" (e.g., 60Hz) that advances simulation time.
• Composition Root: Acts as the centralized point for Dependency Injection, connecting abstractions to their concrete implementations.
• Adapter Wiring: Acts as the bridge between raw network protocols (WebSockets/UDP) and your Application service handlers.
• Environment Management: Handles configuration (ports, tick rates, secrets) and exposes system health checks.

Rules

• Stay Thin: This is a delivery mechanism, not a business engine.
• Zero Logic: Do not place if/then statements here that determine game rules or business outcomes.
• Delegate Everything: Every incoming packet or tick update must immediately trigger an action in the Echoes.Application layer.

---

Echoes.Infrastructure

Project Type	Class Library (.NET 8)
Dependencies	Echoes.Application, Echoes.Domain, Echoes.Shared.Domain, Echoes.Shared.Network, Echoes.Shared.Abstraction
Grouped by	Execution Context

Scope & Responsibility

Implements the contracts defined in the Application layer. This is the technical “How.”

• Entity Framework DbContext
• Repository Implementations
• Redis Caching
• Blockchain RPC Clients
• External API Clients
• File Storage Services
• Dependency injection

Rules

• Implements Interfaces Only
• May Depend on Frameworks
• Translates Persistence Models ⇄ Domain Models
• Pluggable: Should be replaceable without touching Application or Domain

---

Echoes.PersistenceWorker

Project Type	Worker Service (.NET 8)
Dependencies	Echoes.Shared.Domain, Echoes.Shared.Abstraction, Echoes.Application, Echoes.Infrastructure, Echoes.Domain
Grouped by	Execution Context

Scope & Responsibility

Handles asynchronous persistence and background maintenance tasks.

• Batch Saves
• Database Cleanup Jobs
• Scheduled Tasks (Cron-like jobs)
• Event Processing for Durable Storage

Rules

• No Core Business Logic
• Acts as a Delivery Mechanism
• Must Delegate to Application Use Cases

---

Shared

└── Shared
    ├── Echoes.Shared.Abstraction
    ├── Echoes.Shared.Domain
    └── Echoes.Shared.Network

Echoes.Shared.Abstraction

Project Type	Class Library (.NET Standard 2.1)
Dependencies	Echoes.Shared.Domain, Echoes.Shared.Network
Grouped by	Feature Context

Scope & Responsibility

Defines cross-boundary contracts used by both Backend and Unity. This is mainly to allow us to swap quickly between Unity Headless Server and a custom worker service implementation.

• Shared Interfaces (IEventMessage, ICommandMessage)
• Lightweight Abstractions used across systems

Rules

• No framework dependencies
• No business logic
• Keep minimal and stable

Echoes.Shared.Domain

Project Type	Class Library (.NET Standard 2.1)
Dependencies	None (Only standard C# libraries).
Grouped by	Feature Context

Scope & Responsibility

Contains shared enums, constants, and extremely lightweight value objects that must exist identically in both Backend and Unity.

• ItemRarity
• MatchState
• MaxInventorySize
• Simple deterministic calculations shared across environments

Rules

• No persistence logic
• No framework references
• Must remain deterministic and platform-safe

Echoes.Shared.Network

Project Type	Class Library (.NET Standard 2.1)
Dependencies	Echoes.Shared.Domain
Grouped by	Feature Context

Scope & Responsibility

Defines the exact shape of data crossing process or network boundaries.

• HTTP Request/Response DTOs
• WebSocket/SignalR payloads
• Binary packet contracts
• Event message contracts

Rules

• Pure POCOs only
• No business logic
• No validation rules beyond basic structural integrity
• Version carefully (network contracts are fragile)

Unity

└── Echoes.Game
    ├── Application
    │   ├── Client
    │   └── Server
    ├── Domain
    ├── Entrypoints
    │   ├── Client
    │   └── Server
    ├── Infrastructure
    │   ├── Client
    │   └── Server
    └── Presentation

Echoes.Game.App.Client

Project Type	Assembly Definition
Dependencies	Echoes.Shared.Network, Echoes.Shared.Domain, Echoes.Shared.Abstraction
Grouped by	Client Intent

Scope & Responsibility

Orchestrates player actions and intent. It defines the Use Cases for the client.

• Movement prediction logic
• User input handling logic (Command pattern)
• UI navigation flow control

Rules

• Contains "What the client wants to do."
• Does not care how it's implemented (networking agnostic).
• Should not contain visual code (MonoBehaviours).

---

Echoes.Game.App.Server

Project Type	Assembly Definition
Dependencies	Echoes.Shared.Network, Echoes.Shared.Domain, Echoes.Shared.Abstraction
Grouped by	Server Authority

Scope & Responsibility

The gatekeeper of game state. It processes requests, validates state, and executes authoritative rules.

• Request validation (Did the player actually have enough mana?)
• Server-side state transition triggers
• Authority-based logic

Rules

• High security: Never trust the client.
• Excludes UI/Visual logic.
• Pure Application Logic only.

---

Echoes.Game.Infrastructure.Client

Project Type	Assembly Definition
Dependencies	Echoes.Game.App.Client, Echoes.Shared.Abstraction
Grouped by	Client Plumbing

Scope & Responsibility

Implementation details for the client-side plumbing.

• NGO / LiteNetLib Client implementation
• Serialization adapters (Packet -> Domain object)
• Local storage/caching

Rules

• The Pivot Point: This is where you swap libraries (e.g., NGO to LiteNetLib).
• Must implement the interfaces from Shared.Abstraction.

---

Echoes.Game.Infrastructure.Server

Project Type	Assembly Definition
Dependencies	Echoes.Game.App.Server, Echoes.Shared.Abstraction
Grouped by	Server Plumbing

Scope & Responsibility

Implementation details for the server-side plumbing.

• NGO / LiteNetLib Server implementation
• Database repositories (if applicable)
• Server-side transport logic

Rules

• Must be optimized for headless execution.
• Linux/Dedicated Server optimized.

---

Echoes.Game.Presentation

Project Type	Assembly Definition
Dependencies	Echoes.Game.App.Client
Grouped by	View / Input

Scope & Responsibility

Everything the user sees and touches.

• MonoBehaviours
• UI Framework (UI Toolkit / UGUI)
• Camera/Animation controllers

Rules

• The "Thin" Layer: Should only delegate commands to the App.Client services.
• Never write complex business logic here.

---

Echoes.Game.Entrypoints.Client

Project Type	Assembly Definition
Dependencies	Echoes.Game.Presentation, Echoes.Game.Infrastructure.Client, Echoes.Game.App.Client, Echoes.Shared.Domain, Echoes.Shared.Abstraction, Echoes.Shared.Network
Grouped by	Composition Root

Scope & Responsibility

Wiring the client together at startup.

• DI Container setup
• Initializing the client-side Network Client
• Bootstrapping the UI

Rules

• Platform Restriction: Exclude Dedicated Server.
• This is the "Main" entry point.

---

Echoes.Game.Entrypoints.Server

Project Type	Assembly Definition
Dependencies	Echoes.Game.Infrastructure.Server, Echoes.Game.App.Server, Echoes.Shared.Domain, Echoes.Shared.Abstraction, Echoes.Shared.Network
Grouped by	Composition Root

Scope & Responsibility

Wiring the server together at startup.

• Configuring the server-side Network Transport
• Initializing the Server authoritative loop

Rules

• Platform Restriction: Include Dedicated Server only.
• Physical firewall: No reference to Presentation allowed.
